This equipment can be used to ordinary press,tiny press,water decoct, warm dip,heat circumfluence,force circulation seep, etc.
1.Brief Introduction

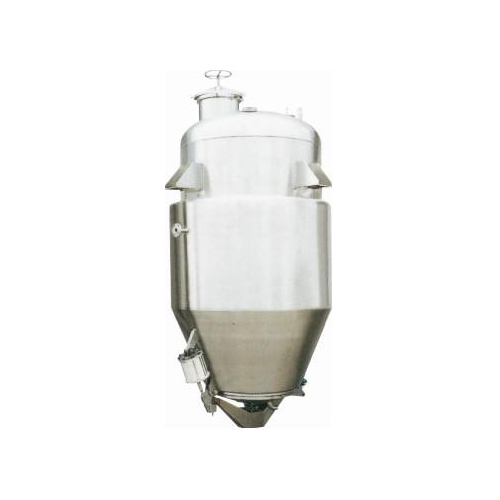

There are four kinds of the extracting tanks series: the mushroom style extracting tank, the oblique wimble type extracting tank, the vertical cylinder type extracting tank and the vertical wimble type.
2.Usage
The facilities can be used in Chinese medicine, food and chemical industries to press, micro-press, water frying, warm soaking, heat cycling, cycling leaking, redolent oil extract and organically solvent recycle. The facilities have the advantages such as high efficiency and simple operation, the CIP cleaning system is in accordance with GMP standards.
3.Structure
The matching facilities include:defoaming machine, congealing machine, cooling machine, oil-water separating machine and medicine pumps.
| Specification | ||||||
| Volume | 1200L | 2300L | 3200L | 6300L | 8500L | 11000L |
| Inner Kettle Design Pressure | 0.09Mpa | |||||
| Interlayer Design Pressure | 0.3Mpa | |||||
| Condensing Air Pressure | 0.6~0.7Mpa | |||||
| Energy consumption Kg/h | 245 | 325 | 345 | 645 | 7200 | 8500 |
