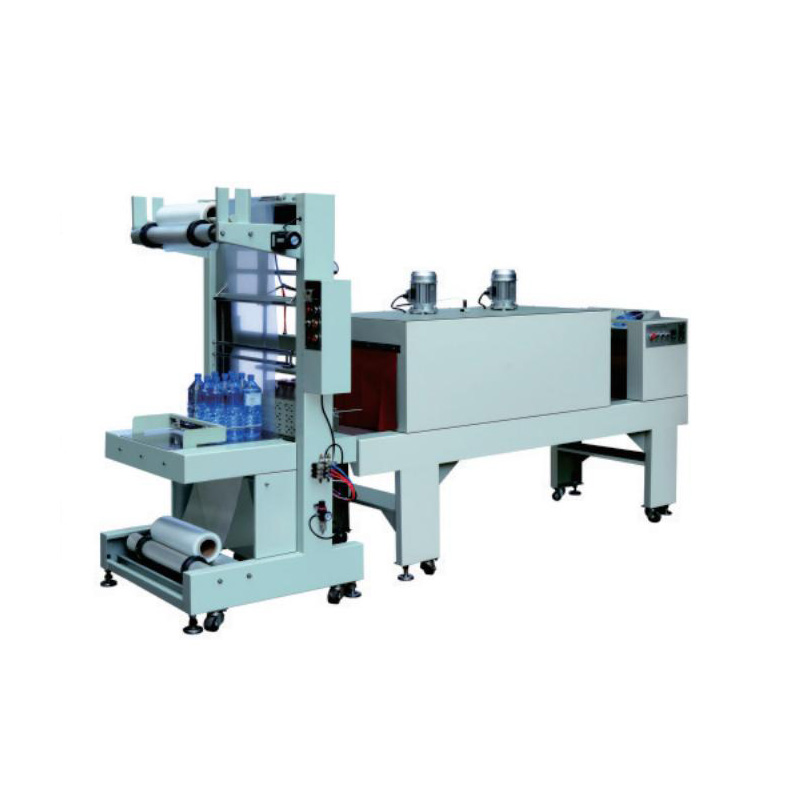

Semi automatic bottle film heat shrink packing machine

Category:

Summarize:
NC-5040 series sleeve wrapper is suitable for wrapping pop-cans, bottles, etc, both with bottom-tray and without bottom-tray, working with BSE-6040 or other PE shrink tunnels.
The machine adopts the Germany advanced technology and international famous brands, which makes capability stable and using long-time.

Characteristic:

  1. Up and down magnetic switch prevent sealing mistakes, and protect the operators.
  2. The input position is adjustable, base on the size of products packaged.
  3. ‘Schneider’ PLC, ‘Schneider’ AC contractor, and Intelligent temperature controller performs stable.
  4. Large power conveyer motor, with stepless speed regulating, ensures smooth feeding.
  5. Up and down large power fan system ensures the excellent effect of shrinking in one time.
  6. Super cooling system cools the packing and makes the figuration perfectly.
  7. The size of tunnel can be customized as your request.

Specification

Model NC-5038B(Pneumatic) Model BSE-6040(A)
Power supply 220-240V, 50-60Hz;1.8KW Power supply 3phase 220V/380-460V 50-60HZ
Capacity 0-6pcs/minute Heater power 20KW Adjuster
Sealing time/shrink time 0.5-1.5s, 0-0.6s Conveyer speed 0-10m/minute
Conveyor loading 25kg Tunnel size(L*W*H) 1500*500*460mm
Film width Max. 500mm Conveyer loading 30kg MAX.
Film thickness 0.03-0.25mm Shrink film PE,POF,PVC,PP
Max. packing dimension(L*W*H) 450 x 270 x 350mm Machine weight 470KG
Min. packing dimension(L*W*H) 250 x 60 x 60mm Machine size 2500*820*1680mm
Machine size(L*W*H) 1020 x 830 x 1980mm
