Semi automatic 3 Bottle Type 5 Gallon Bottle Decapping and Washing Machine – Shanghai Nancheng Machinery Co., Ltd.

Semi automatic 3 Bottle Type 5 Gallon Bottle Decapping and Washing Machine

Main technical parameters:



Power supply 110V/120V±5%  50HZ/60HZ
Input power 1.1KW+1.1KW+1.1KW
Bottle spec(mm) Φ270×490×Φ56
Bottle volume 5 or 3 gallons
Bottle washing capacity 300b/h
Out size(mm) 1850×950×1300
Packing size(mm): 1950×1050×1410
Weight: N.W.:265KG G.W.:290KG

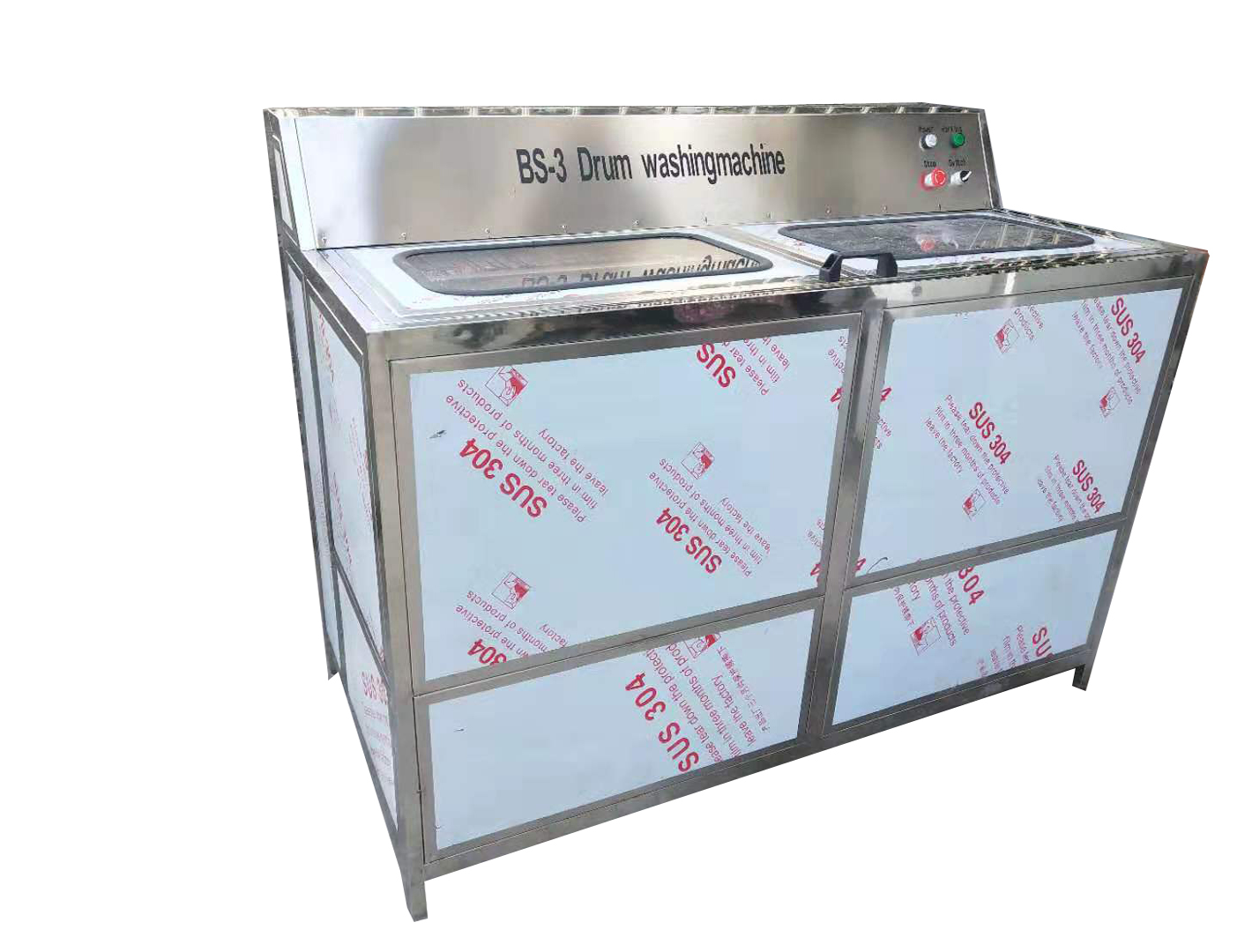

3 Bottle 5 gallon bottle decapping and washing machine



Machine Introduction

 This 3 bottles washing machine is mainly use for the 3,5 gallon barrel filling production line, it can wash the barrel mouth and body, so specially use for mineral water etc.

The barrel is first decapped on the right side and then is put into the left part.

The brushes will remove the stain but will not damage the barrel and printed pattern on the barrel, the special brushes on the

bottom of the barrel. It can not only wash barrel with flat barrel, but also barrel with sunken bottom.

During the process of cleaning. With the aid of detergent, it can clean the stain completely. On the outlet for barrel, the clean

water spraying system will wash away the detergent.

The whole machine has employed an enclosed design, with high reliability and good stability.

It can wash 3 bottles simultaneously, save the working time
