Hollow fiber ultra filtration system for mineral water – Shanghai Nancheng Machinery Co., Ltd.

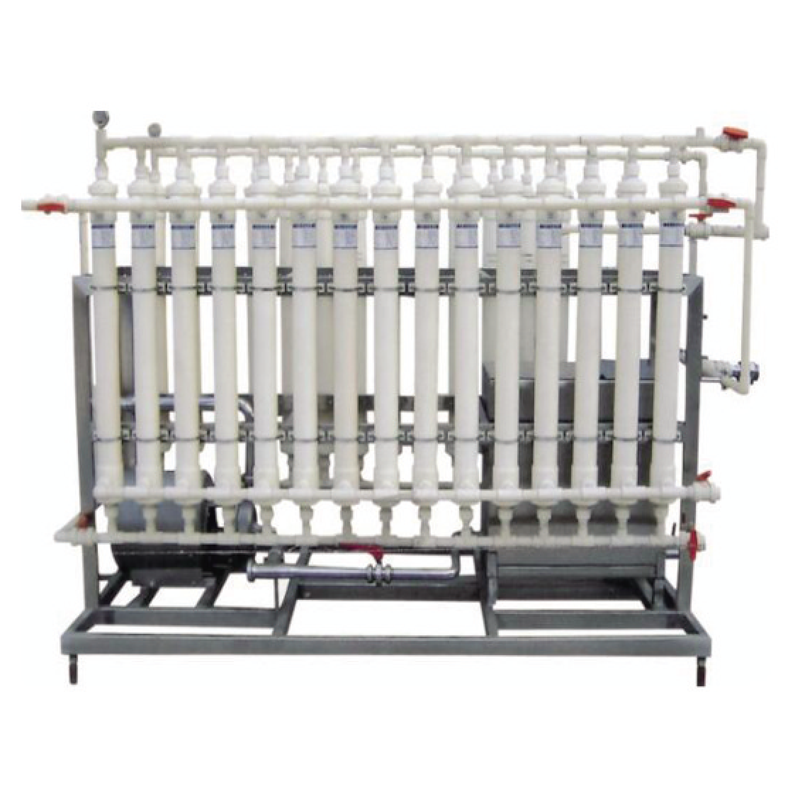

Hollow fiber ultra filtration system for mineral water

Hollow fiber ultra filtration system is a film separation technology to separate, condense, and distill the macromolecule.

Production Details:

Hollow fiber ultra filtration system is a film separation technology to separate, condense, and distill the macromolecule. ultra filter separation undertakes in the normal temperature and low pressure, without state change, simple structure, easy operation, wide usage, and strong general capacity. Condensing ultra filter is widely used in the industries such as: food, ferment, medicine, environment, and chemicals. Water ultra filter can remove the rubber particles, germs, virus, heat resource, protein and high polymer organic matter. It can be used separately to make process using water and drinking water, and also can function as anti-filtration water inputting pre-treatment, and the fine end process of high pure water. Hollow fiber ultra-filtration system (including: raw water pump, sand filter, active carbon filter, water softener, micro filter, pressure adding pump, protecting filter, hollow fiber ultra filter, sterilization, water tank, and fittings).

Technical parameter

Model UF-1000 UF-3000 UF-5000 UF-10000
Process capacity(t/h) 1000 3000 5000 10000
Resource water pump model CHL2-40 CHL4-40 CHL8-40 CHL16-40
Mechanic filter φ350×1500 φ500×1500 φ600×1500 φ900×1500
Mechanic filter(resin001×7) φ350×1500 φ500×1500 φ600×1500 φ900×1500
Filter core number 5 5 7 7
