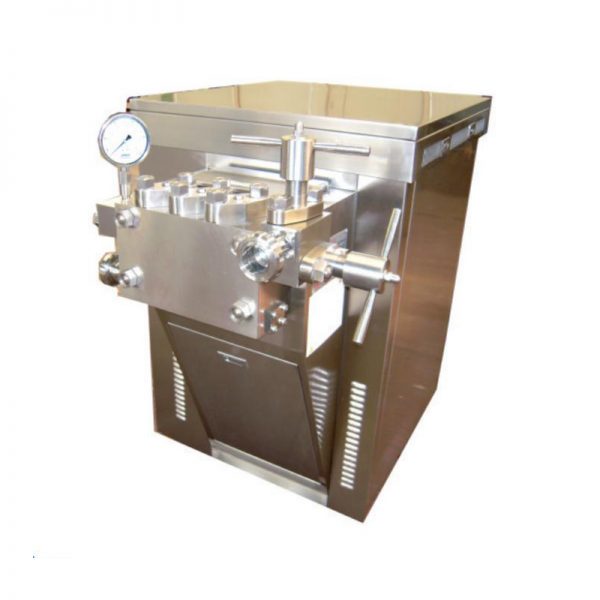

JJ series high pressure homogenizer is a special equipment in liquid material homogenization, lessening and high pressure transportation, which are applied widely for food, dairy, beverage, medicine, fine chemical and bio-engineering technology, etc.
Technical Parameter
| Model | Pressure
(Mpa) |
Diameter of
inlet(mm) |
Diameter of
outlet(mm) |
outlet(mm) | Motor power (kw) |
Size (L×W×Hmm) |
Weight
(kg) |
| JJ-1/25 | 25 | 25 | 15 | ZG1/2″ | 7.5 | 1050×680 x1110 |
600 |
| JJ -2/25 | 25 | 40 | 15 | ZG1/2″ | 15 | 1150×930 x1270 |
1000 |
| JJ -3/25 | 25 | 50 | 25 | ZG3/4″ | 22 | 1250×1000 x1350 |
1300 |
| JJ -4/25 | 25 | 50 | 25 | ZG3/4″ | 30 | 1300×1160 x1500 |
1400 |
| JJ -5/25 | 25 | 50 | 25 | ZG3/4″ | 37 | 1400×1250 x1600 |
1500 |
| JJ-1/40 | 40 | 25 | 15 | ZG1/2″ | 15 | 1050×680 x1110 |
1100 |
| JJ-2/40 | 40 | 40 | 15 | ZG1/2″ | 22 | 1150×820 x1180 |
1400 |
| JJ-3/40 | 40 | 50 | 25 | ZG3/4″ | 30 | 1250×1150 x1500 |
1700 |
| JJ-4/40 | 40 | 50 | 25 | ZG3/4″ | 40 | 1300×1260 x1600 |
2000 |
| JJ-5/40 | 40 | 25 | 25 | ZG3/4″ | 55 | 1400×1360 x1700 |
2300 |
| JJ-1/60 | 60 | 40 | 25 | ZG3/4″ | 22 | 1300×1060 x1350 |
1200 |
| JJ-2/60 | 60 | 50 | 25 | ZG3/4″ | 38 | 1400×1160 x1450 |
1500 |
| JJ-3/60 | 60 | 50 | 25 | ZG3/4″ | 48 | 1500×1260 x1550 |
1800 |
| JJ-5/60 | 60 | 50 | 25 | ZG3/4″ | 68 | 1600×1360 x1650 |
2100 |
