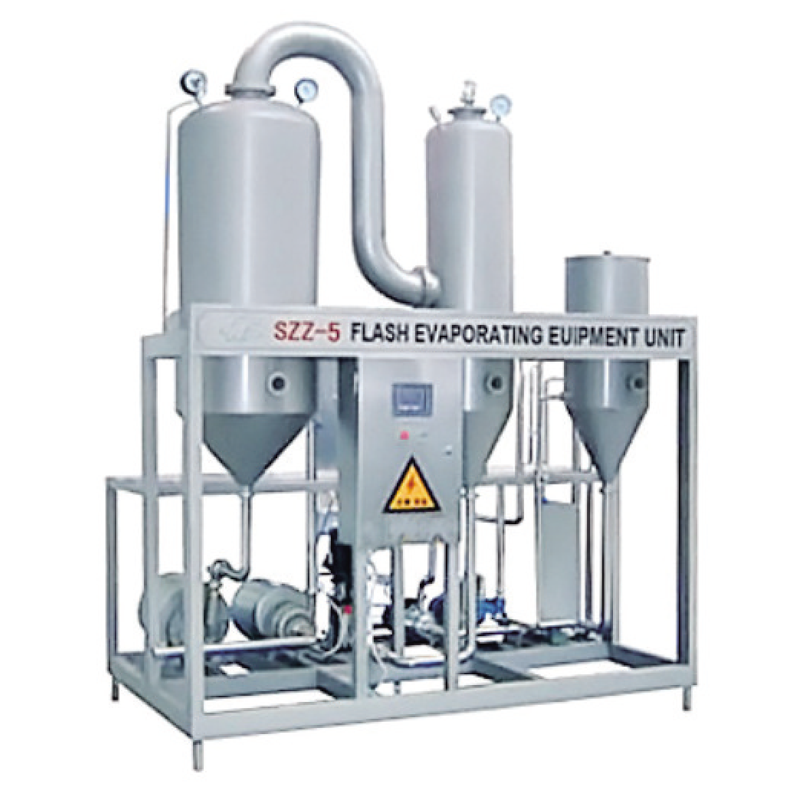

Flash evaporator

Category:

Applicable fields and work principle

This unit is mainly used in the pre-production steps of producing liquid milk. Vacuum instant vaporization concentrates sweat milk without damaging nutritional components, for example: the dry matter in sweat milk of 11.5%-12% can reach up to 12.5%-13%after flash vaporization, which increases the dry matter and removes the smell as well, so to keep the original milk flavor. This machine needs to be matched with other heating machine. Generally, it is connected after the keeping pipe of sterilizer, with imputing material temperature about 90℃.The specific connection method reference to craft flow chart.

Main material

The surface of this machine in touch with material adopts high quality of stainless steel, and sealing packing collar is made in eatable silicon rubber.

Technical Parameter

Model SZZ-5 SZZ-10 SZZ-15 SZZ-20D
Capacity 5000L/H 10000L/H 15000L/H 20000L/H
Evaporation 400kg/h 800kg/h 1200kg/h 1600kg/h
Vacuum degree 0.064-0.084MPa
Total power 13kw 16.5kw 21kw 26.5kw
Size 2500×860×3150 2800×1060×3600 3500×1500×400 3800×1800×4200
Weight 900kg 1100kg 1500kg 2000kg
