Applicable range
- For liquid, mixture, production process, liquid blending etc.
- Widely used in the fields of food, dairy products, fruit juice drinks, medicine, chemical engineering and bioengineering.

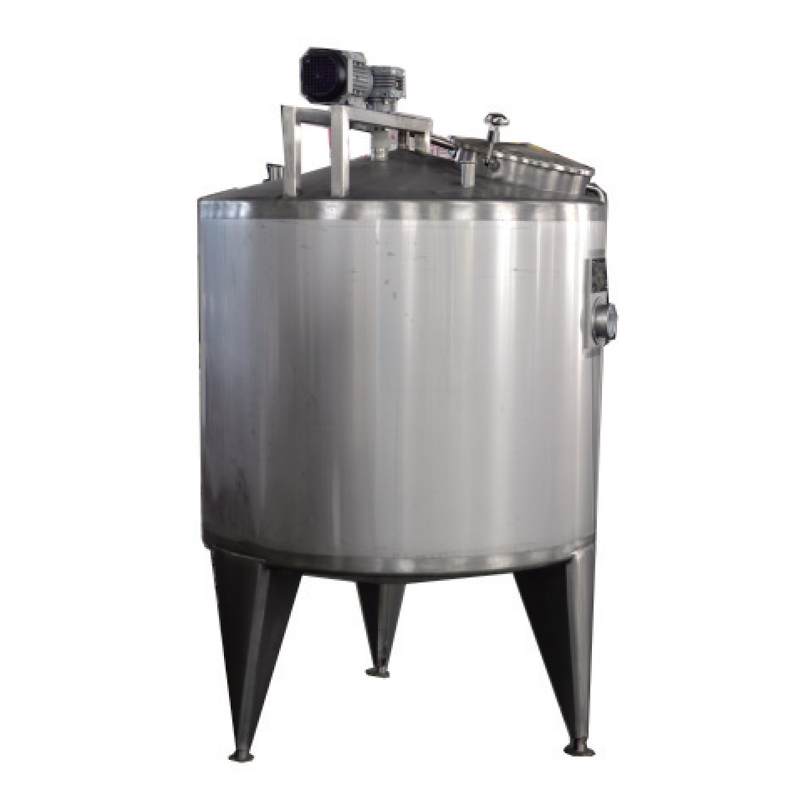

Structural Features
Double layers, Mezzanine filled insulation materials.
Material: sanitary stainless steel.
Product Shape: Round cylinder wall of inner layer, to ensure sterility
Equipment composition
- Quick opening manhole.
- All kinds of CIP clean parts.
- Pest control sanitary breathable cover.
- Height adjustable of triangular support.
- Removable feed tube kit.
- Thermometer (on user needs)
- Ladder (on user needs)
8. Propeller Side Mixer
9. Level gauge and level control system (on user needs).
10. Anti-vortex board.
Main Technical Standards
|
Effective volume （L） |
Dimension of tank
（mm x mm） |
Total high
（H） |
δ Heat preservation layer
（mm） |
Diameter of inlet & outlet
（mm） |
Motor power
（kw） |
Blending speed
（R/mm） |
| 1000 | 1060×1220 | 2550 | 51 | 60 | 0.75 | 1480 |
| 2000 | 1340×1500 | 2900 | 51 | 60 | 1.1 | 1480 |
| 3000 | 1410×2000 | 3400 | 51 | 60 | 1.5 | 1480 |
| 5000 | 1810×2000 | 3500 | 51 | 60 | 2.2 | 1480 |
| 8000 | 2060×2440 | 4000 | 51 | 60 | 3 | 1480 |
| 10000 | 2300×2440 | 4050 | 51 | 60 | 3 | 1480 |
| 15000 | 2530×3000 | 4700 | 51 | 60 | 3 | 960 |
| 20000 | 2640×3660 | 5400 | 51 | 60 | 3 | 960 |
| 50000 | 3000×7500 | 8500 | 76 | 60 | 3 | 960 |
