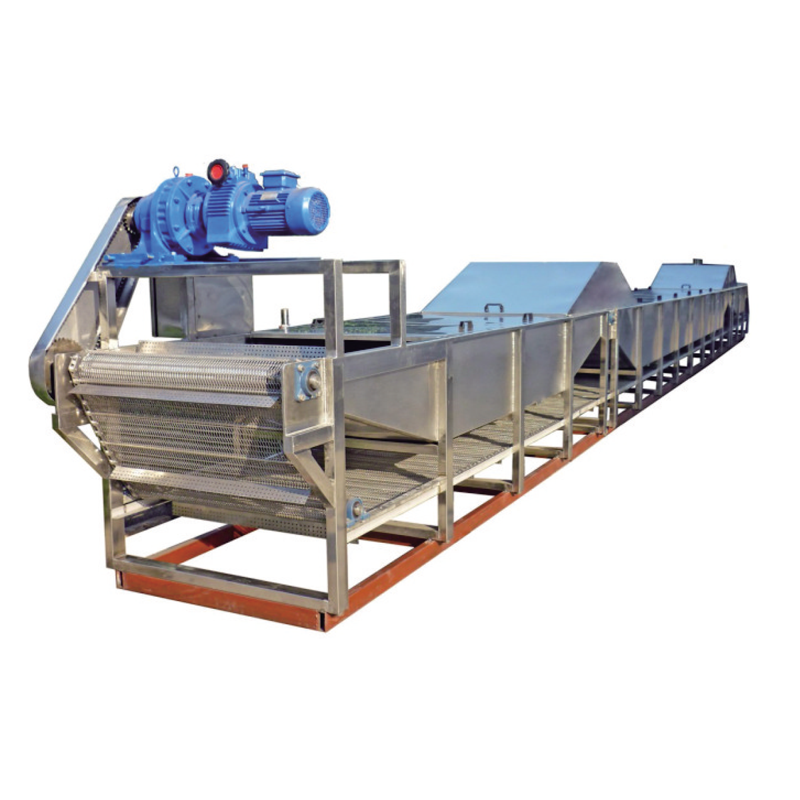

he sterilizer is newly designed on the basis of absorbing technology of same produces in Japanese light industry it is specially applied for the twice sterilization of dairy, beverage and jelly the parts contacting packing products are all made of SUS304 stainless steel, and the large chain board and chain wheel adopt sane materials .It has the functions of anti-acid , anti-alkali, anti-corrosion. The water tank is headed by steam, and the steam volume is automatically controlled by steam solenoid valve. The hot water can be made full use of .The whole machine has such characteristics as reasonable design, fine manufacturing, stable operation and beautiful.
Technical Parameter
| Produce capacity | 1-10T/H |
| Sterilizing temperature | < 98℃ It can be adjusted according to order |
| Sterilizing time | 10-35 minute speed infinitive adjusting |
| Cooling temperature | 20℃ |
| Cooling time | 10-25 minute speed infinitive adjusting |
| Steam pressure | 0.4 Mpa |
| Link belt time | 0.17 -10m/min speed infinitive adjusting |
| Centrifuge blower fan | 3kw |
| Compete weight | About 6000kg |
| Overall dimension | 16000x2200x 2000 mm |
