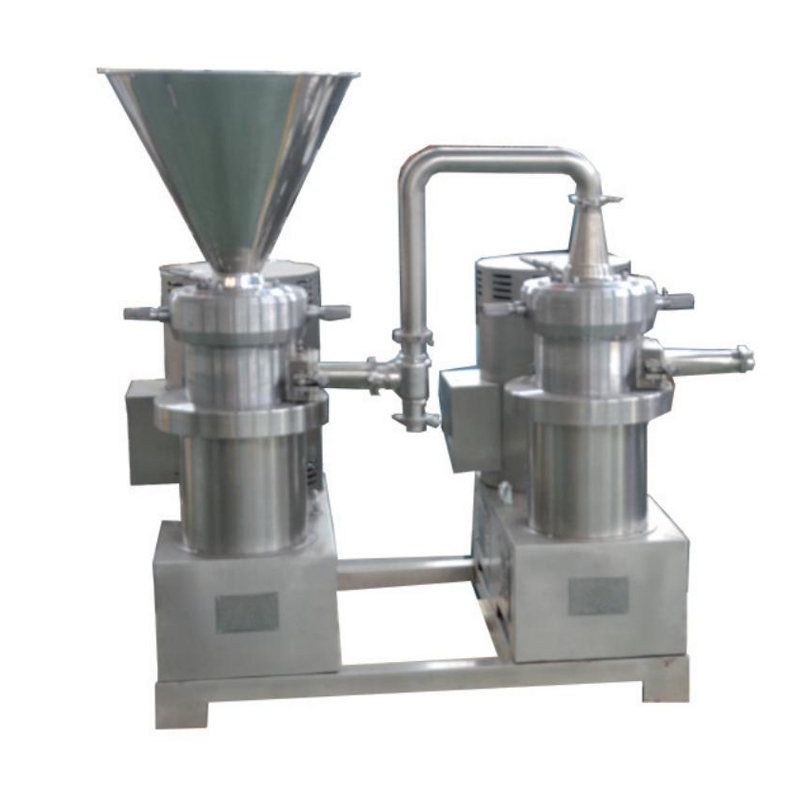

Colloid mill is damp type super- particulate new type Production equipment, applying for homogenization, emulsification, dispersing, mixing, smashing, milling for emulsification, it is applied widely in such industries as food (jam, juice, dairy, plant albumen beverage, etc.), medicine (all kinds of syrup, nutrition liquid, Chinese traditional medicine, poultice, etc.)
Main technical parameters
| Model | Capacity (t/h) | Power(kw) | Mill tray diameter | Caliber of material inlet | Caliber of material outlet | The diameter of cooling pipe | Dimension(L*W*H) | Weight(kg) |
| JM-80L | 0.5-1 | 3 | 80 | 1″ | 2″ | 1/4″ | 48×34×86 | 88 |
| JM-80W | 0.5-1 | 3 | 80 | 56×30×30 | ||||
| JM-100L | 0.7-3 | 5.5 | 100 | 1″ | 21/2″ | 1/4″ | 58×43×93 | 150 |
| JM-100W | 0.7-3 | 5.5 | 100 | 65×35×35 | ||||
| JM-120L | 1-3.5 | 5.5 | 120 | 11/2″ | 21/2″ | 1/4″ | 60×43×81 | 155 |
| JM-120W | 1-3.5 | 5.5 | 120 | 68×36×36 | ||||
| JM-140L | 1-4 | 7.5 | 140 | 11/2″ | 21/2″ | 1/4″ | 58×44×93 | 165 |
| JM-140W | 1-4 | 7.5 | 140 | 68×37×37 |
