Specification:

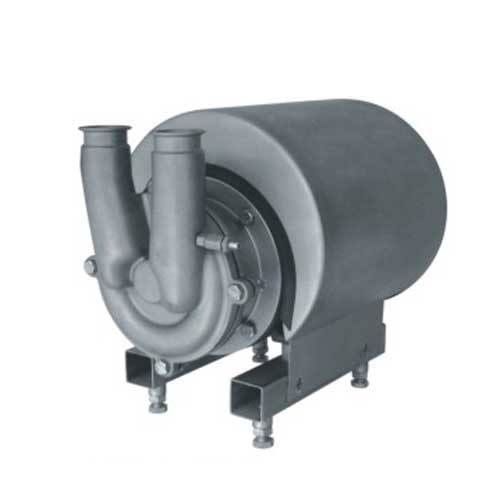

Professional manufacturer Name: Stainless steel cip self priming pump(pump, Stainless steel self-suction pump ) Material: Stainless steel
These are the sanitary pumps of centrifugal type for liquid feeding that have been based on many years of our specialized experience. The Sanitary Pumps are rationally designed for use particularly in food industry. All model spermit disassembly, clearing and reassembly by a single touch operation, thus offering always hygienic use. These pumps are widely used in feeding various kinds of liquid with extremely favourable acceptance.
Main parameter
| Function | (Parameter) |
| Flow | 10-20m3/h |
| Total Head | 18-24 m |
| Suction Stroke | 5-6 m |
| Impeller Diameter | 189 mm |
| Inlet/Outlet Diameter | 51 mm |
| Motor Type | Y112-4 |
| Power | 4 kw ( 380V 50HZ ) |
| Speed | 1420 r/min |
| Dimensions(L*W*H) | 600*350*420 |
| Machine Weight | 55 kg |
