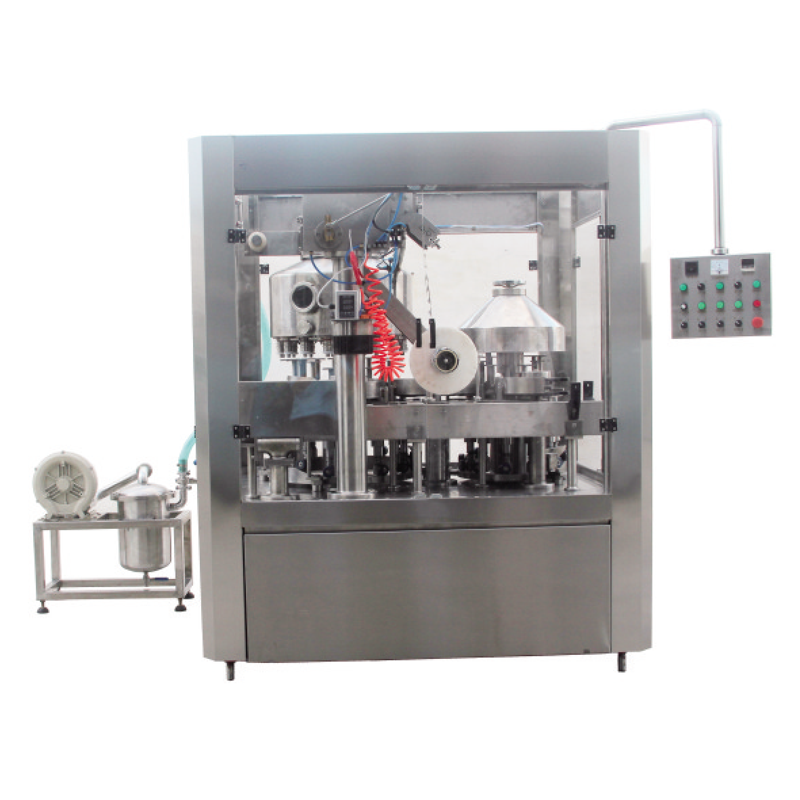

Bottle filling with aluminum foil sealing machine

This machine introduces the foreign filling technology, unit filling, aluminum foil cover forming, sealing in one machine. It’s widely used for food and pharmaceutical package, especially it’s an ideal equipment for various plastic bottle package and seal in milk packages, removing foam and high effective sealing finished products. It reasonably adopts the double-slope cover-punching technology and largely developed the foil usage. It adopts the integral motor design and the first-rate driving, so the running is steady and flat.

Technical Parameter

Model LBF-12 LBF -16 LBF -24
Filling quantity 12 16 24
Production capacity﹙B/min﹚ 5000 6000 10000
Bottle high﹙MM﹚ 120-170
Bottle diameter﹙MM﹚ 50-65
Filling capability﹙ML﹚ 220-500
Filling volume 500±1.5
Power﹙KW﹚ 2.7 3.3 8.2
Size﹙MM﹚ 6000x1200x1800 6200x1300x1900 5000x1800x2200
Weight﹙KG﹚ 2000 2000 1600
