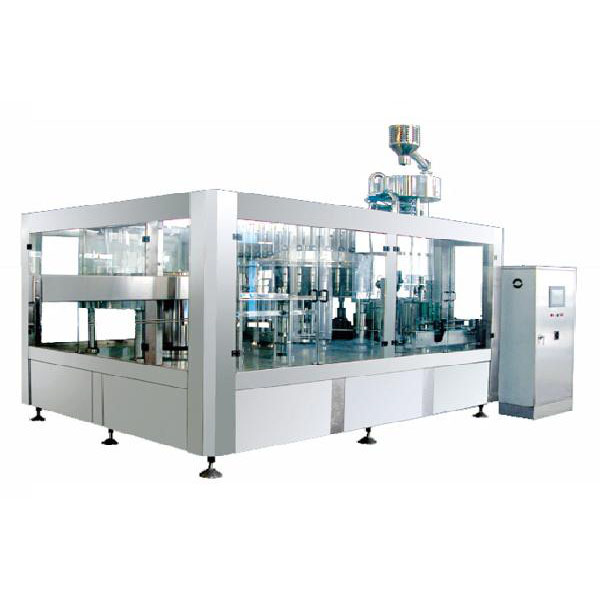

Tea Beverage Filling Machine (hot filling)
The material of the bottles can be PET, glass and so on. The function of fluent and fast filling action, high filling precision, reliable capping and low material loss makes it effectively prevent secondary polluction of the neck with high automation in the whole process. It can achieve the replacement of different bottles only by exchanging equivalent parts.
This beverage machinery can also form complete set of production line with other related systems, providing proposals for full-set of hot filling.
Satisfying different customers’ different requirements about the production capacity: from 3000-30000b/h,
juice beverage filling, tea beverage filling and fruit beverage filling etc.
The Technical Parameter of the Juice & Tea Beverage Hot Filling Machine
| Model | Washing Heads | Filling Heads | Capping heads | Production capacity (b/h) | Main motor power (kw) |
| RCGF18-18-6 | 18 | 18 | 6 | 5000 | 3.5 |
| RCGF24-24-8 | 24 | 24 | 8 | 8000 | 4.5 |
| RCGF32-32-10 | 32 | 32 | 10 | 12000 | 6 |
| RCGF40-40-10 | 40 | 40 | 10 | 15000 | 6.5 |
| RCGF50-50-12 | 50 | 50 | 12 | 18000 | 8 |
| RCGF60-60-15 | 60 | 60 | 15 | 21000 | 12 |
| RCGF72-72-16 | 72 | 72 | 16 | 28000 | 15 |
Features of the hot filling machines:
• Full filling is to avoid bottles from sinking after the bottles cooling off, and to decrease dissolved oxygen to the utmost extent.
• Reasonable structured storage hopper and material supply system keep material in the constant flow speed, constant pressure and without frothing. Usually high position tank is adopted.
• The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize the complete CIP.
• Sanitary filling head system is of umbrella structure, high filling speed.
• Perfect filling temperature control system.
• Return tank system has the function of supplying the material automatically.
• Perfect CIP system
• Reasonable structured storage hopper and material supply system keep material in the constant flow speed, constant pressure and without frothing. Usually high position tank is adopted.
• The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize the complete CIP.
• Sanitary filling head system is of umbrella structure, high filling speed.
• Perfect filling temperature control system.
• Return tank system has the function of supplying the material automatically.
• Perfect CIP system
